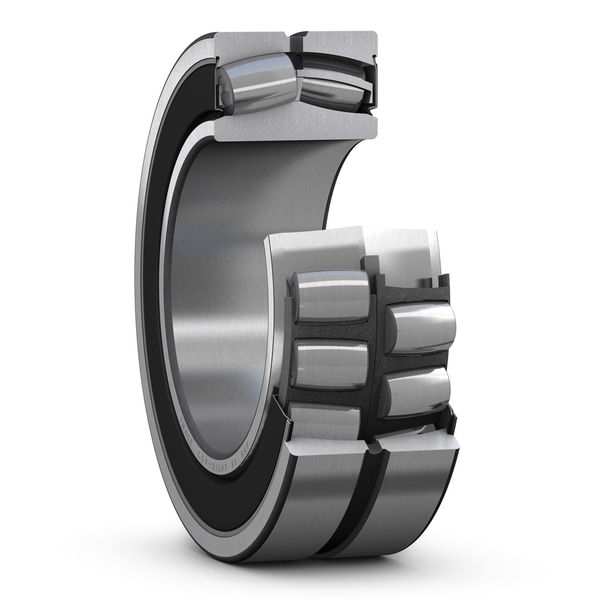

SKF 22228-2CS5/VT143
Spherical roller bearing with integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
140.0 mm
Bore diameter
D
250.0 mm
Outside diameter
B
68.0 mm
Width
d2
161.0 mm
Shoulder diameter of inner ring
D1
225.0 mm
Shoulder/recess diameter of outer ring
b
11.1 mm
Width of lubrication groove
K
6.0 mm
Diameter of lubrication hole
r1,2
3.0 mm
Chamfer dimension
mass
14.1 kg
Product net weight
