SKF 22232-2CS5/VT143

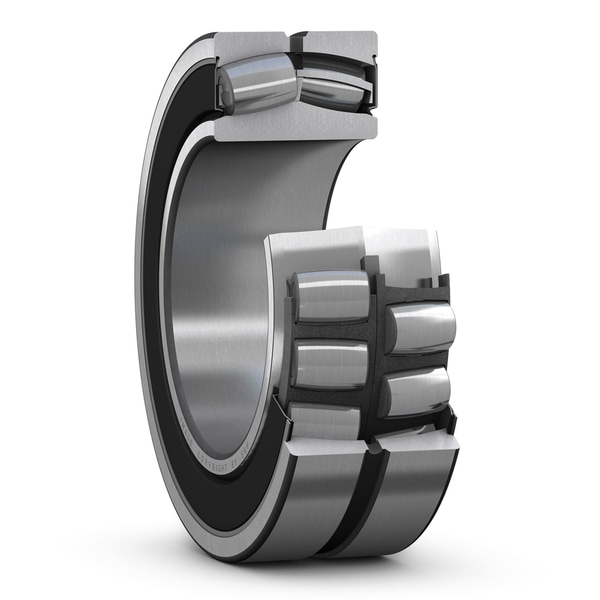

Spherical roller bearing with integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
160.0 mm
Bore diameter
D
290.0 mm
Outside diameter
B
80.0 mm
Width
d2
185.0 mm
Shoulder diameter of inner ring
D1
264.0 mm
Shoulder/recess diameter of outer ring
b
13.9 mm
Width of lubrication groove
K
7.5 mm
Diameter of lubrication hole
r1,2
3.0 mm
Chamfer dimension
mass
22.8 kg
Product net weight
