SKF 22234-2CS5/VT143

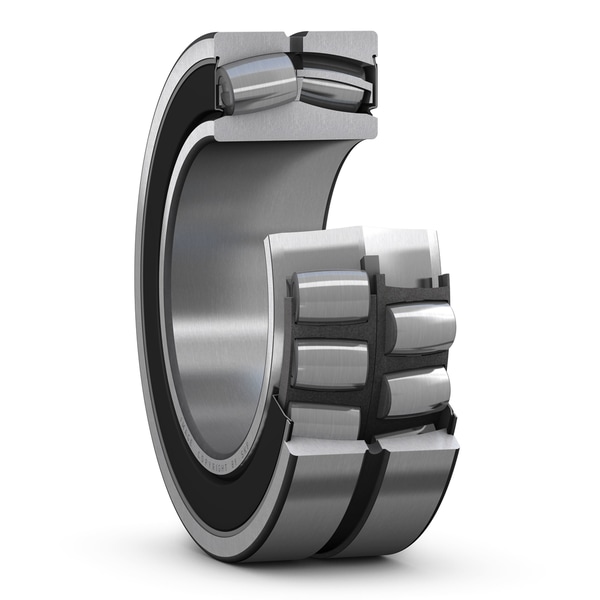

Spherical roller bearing with integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
170.0 mm
Bore diameter
D
310.0 mm
Outside diameter
B
86.0 mm
Width
d2
198.0 mm
Shoulder diameter of inner ring
D1
282.0 mm
Shoulder/recess diameter of outer ring
b
16.7 mm
Width of lubrication groove
K
9.0 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
mass
28.0 kg
Product net weight
