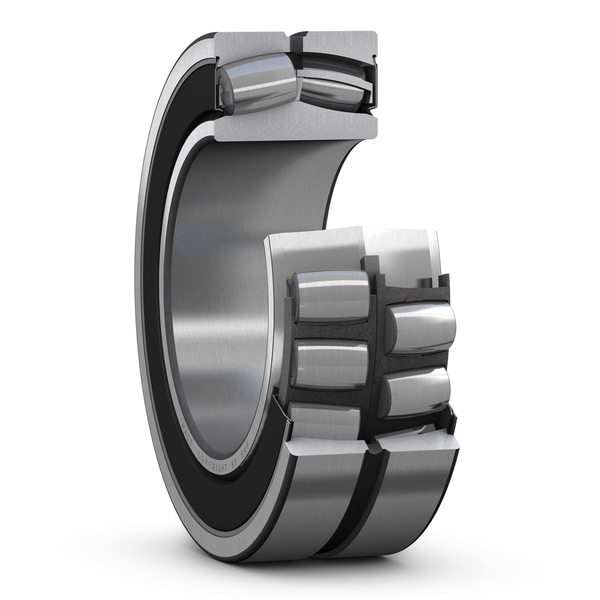

SKF 22244-2CS5K/VT143
Spherical roller bearing with tapered bore, integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
220.0 mm
Bore diameter
D
400.0 mm
Outside diameter
B
108.0 mm
Width
d2
257.0 mm
Shoulder diameter of inner ring
D1
359.0 mm
Shoulder/recess diameter of outer ring
b
16.7 mm
Width of lubrication groove
K
9.0 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
mass
57.9 kg
Product net weight
