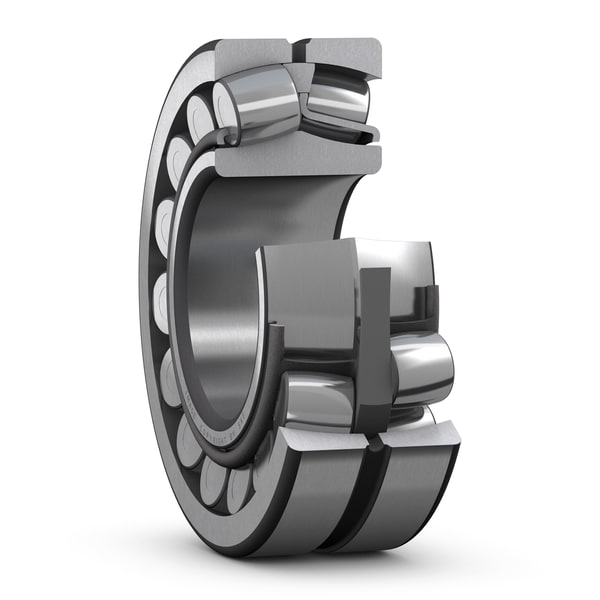

SKF 22312 EK/VA405
Spherical roller bearing for vibratory applications, with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
D
130.0 mm
Outside diameter
B
46.0 mm
Width
d2
77.9 mm
Shoulder diameter of inner ring
D1
110.0 mm
Shoulder/recess diameter of outer ring
b
8.3 mm
Width of lubrication groove
K
4.5 mm
Diameter of lubrication hole
r1,2
2.1 mm
Chamfer dimension
mass
2.86 kg
Product net weight
