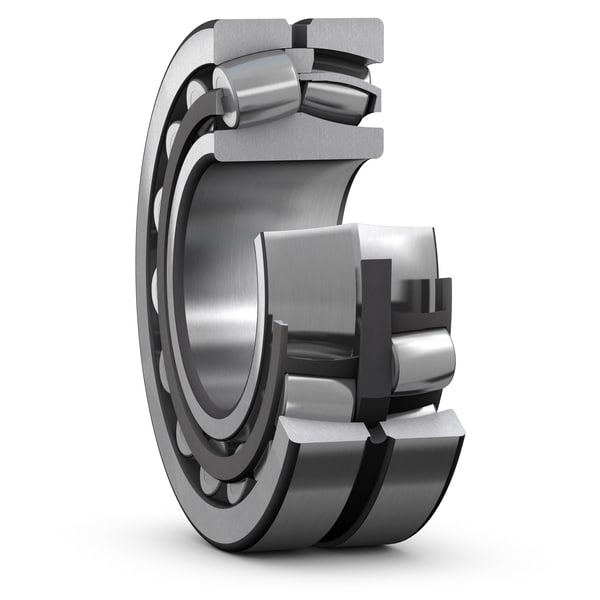

SKF 22324 CCKJA/W33VA405
Spherical roller bearing for vibratory applications, with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
260.0 mm
Outside diameter
B
86.0 mm
Width
d2
152.0 mm
Shoulder diameter of inner ring
D1
216.0 mm
Shoulder/recess diameter of outer ring
b
13.9 mm
Width of lubrication groove
K
7.5 mm
Diameter of lubrication hole
r1,2
3.0 mm
Chamfer dimension
mass
21.8 kg
Product net weight
