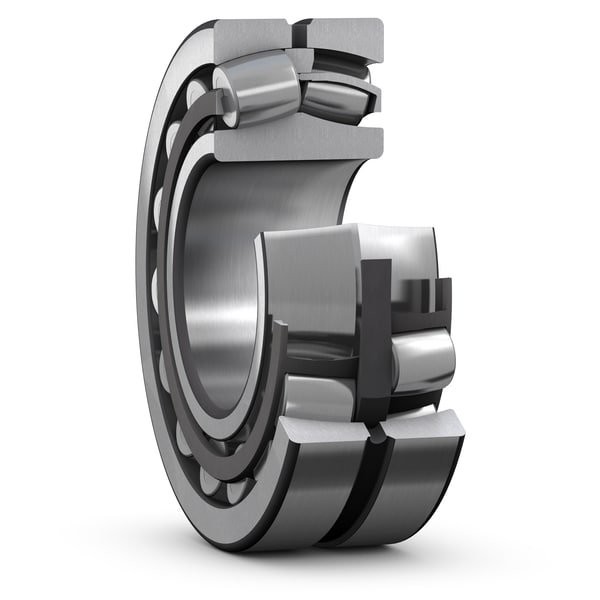

SKF 22334 CCKJA/W33VA405
Spherical roller bearing for vibratory applications, with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
170.0 mm
Bore diameter
D
360.0 mm
Outside diameter
B
120.0 mm
Width
d2
213.0 mm
Shoulder diameter of inner ring
D1
300.0 mm
Shoulder/recess diameter of outer ring
b
16.7 mm
Width of lubrication groove
K
9.0 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
mass
57.2 kg
Product net weight
