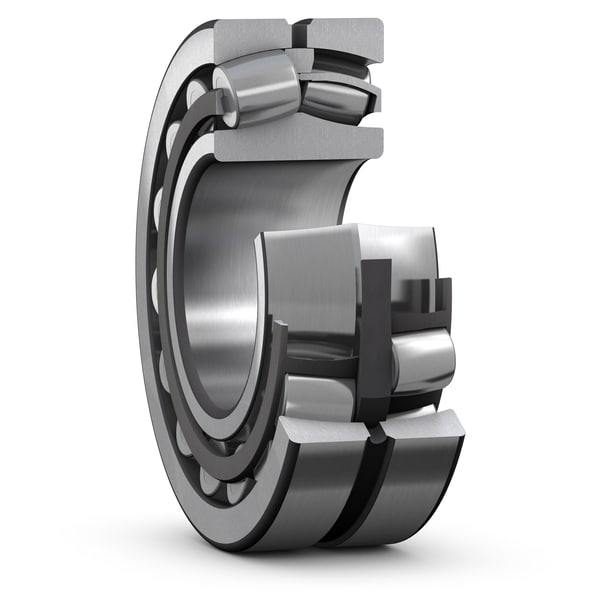

SKF 22340 CCKJA/W33VA405
Spherical roller bearing for vibratory applications, with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
200.0 mm
Bore diameter
D
420.0 mm
Outside diameter
B
138.0 mm
Width
d2
249.0 mm
Shoulder diameter of inner ring
D1
351.0 mm
Shoulder/recess diameter of outer ring
b
22.3 mm
Width of lubrication groove
K
12.0 mm
Diameter of lubrication hole
r1,2
5.0 mm
Chamfer dimension
mass
88.5 kg
Product net weight
