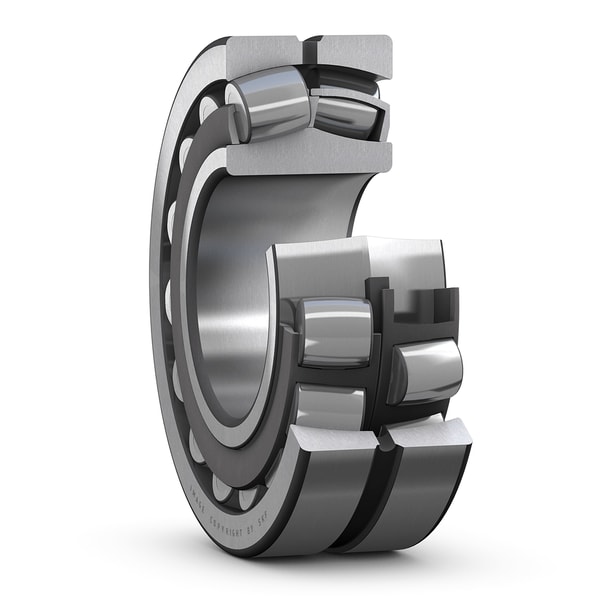

SKF 22352 CC/C4W33VA991
Spherical roller bearing with relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
260.0 mm
Bore diameter
D
540.0 mm
Outside diameter
B
165.0 mm
Width
d2
328.0 mm
Shoulder diameter of inner ring
D1
458.0 mm
Shoulder/recess diameter of outer ring
b
22.3 mm
Width of lubrication groove
K
12.0 mm
Diameter of lubrication hole
r1,2
6.0 mm
Chamfer dimension
mass
178.0 kg
Product net weight
