SKF 23030-2CS5K/VT143

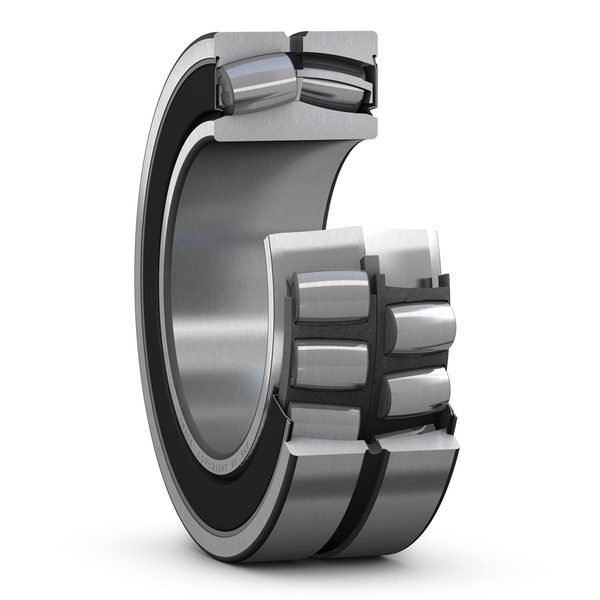

Spherical roller bearing with tapered bore, integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
150.0 mm
Bore diameter
D
225.0 mm
Outside diameter
B
56.0 mm
Width
d2
165.0 mm
Shoulder diameter of inner ring
D1
211.0 mm
Shoulder/recess diameter of outer ring
b
8.3 mm
Width of lubrication groove
K
4.5 mm
Diameter of lubrication hole
r1,2
2.1 mm
Chamfer dimension
mass
7.37 kg
Product net weight
