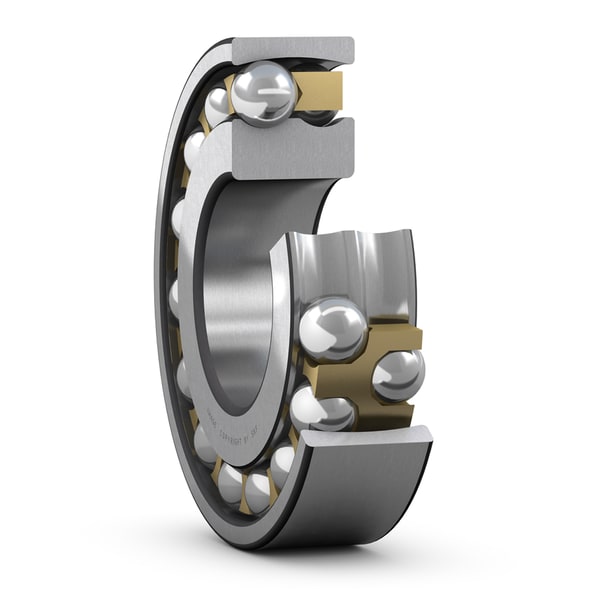

SKF 2304 M
Self-aligning ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
D
52.0 mm
Outside diameter
B
21.0 mm
Width
d1
29.15 mm
Shoulder diameter inner ring
D1
41.9 mm
Shoulder diameter outer ring
r1,2
1.1 mm
Chamfer dimension
mass
0.227 kg
Product net weight
