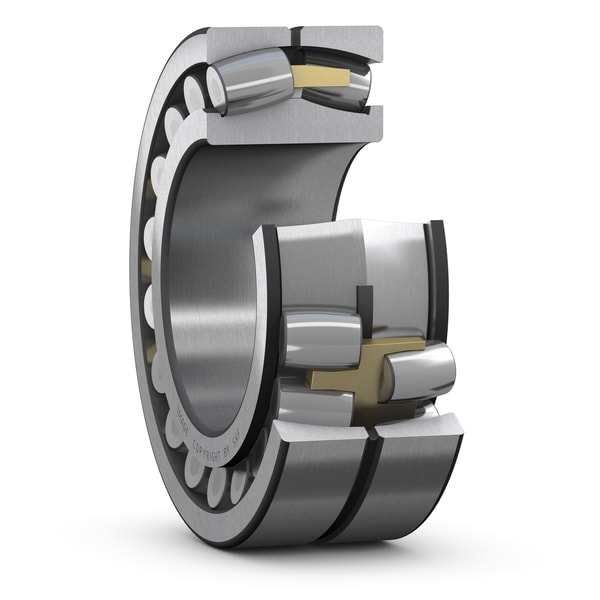

SKF 23060 CACK/W33
Spherical roller bearing with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
300.0 mm
Bore diameter
D
460.0 mm
Outside diameter
B
118.0 mm
Width
d2
352.0 mm
Shoulder diameter of inner ring
D1
414.0 mm
Shoulder/recess diameter of outer ring
b
16.7 mm
Width of lubrication groove
K
9.0 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
mass
71.5 kg
Product net weight
