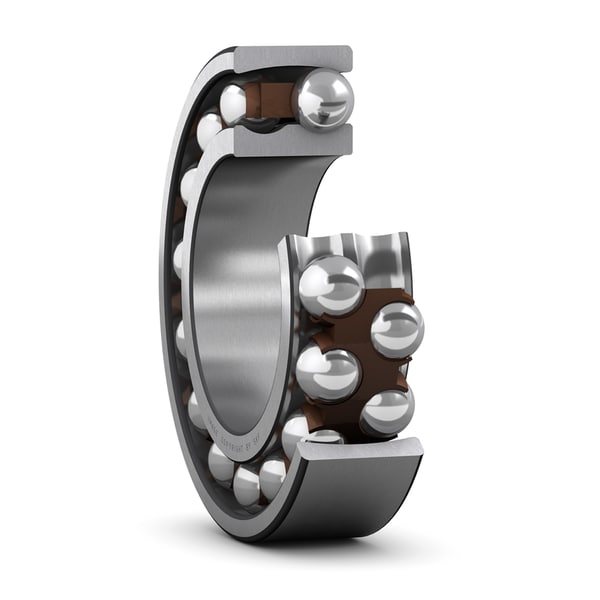

SKF 2309 EKTN9
Self-aligning ball bearing with tapered bore
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
36.0 mm
Width
d1
60.16 mm
Shoulder diameter inner ring
D1
86.0 mm
Shoulder diameter outer ring
r1,2
1.5 mm
Chamfer dimension
mass
1.17 kg
Product net weight
