SKF 23122/C4W33VA9B1

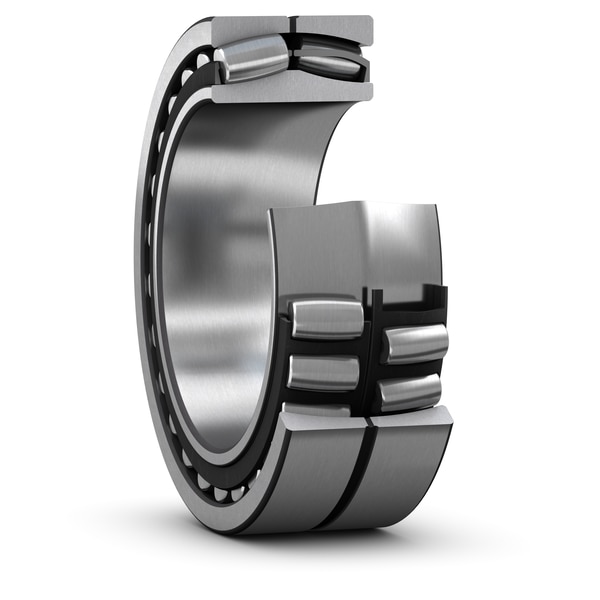

Spherical roller bearing for continuous casters, with relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
110.0 mm
Bore diameter
D
180.0 mm
Outside diameter
B
56.0 mm
Width
d2
126.0 mm
Shoulder diameter of inner ring
D1
157.0 mm
Shoulder/recess diameter of outer ring
b
8.3 mm
Width of lubrication groove
K
4.5 mm
Diameter of lubrication hole
r1,2
2.0 mm
Chamfer dimension
mass
5.4 kg
Product net weight
