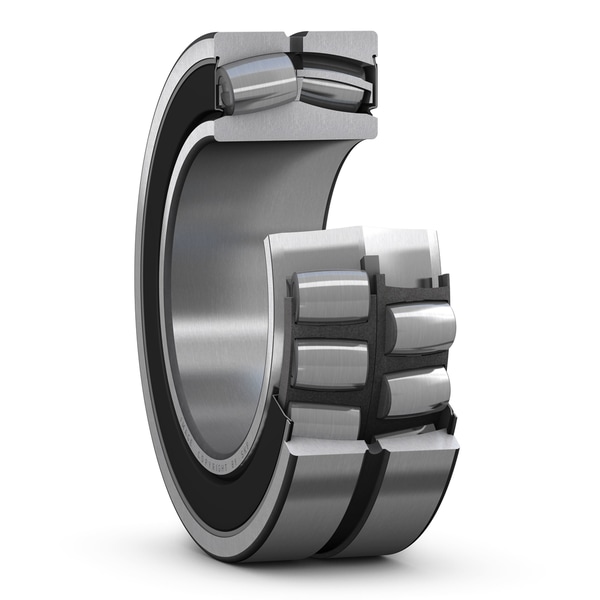

SKF 23134-2CS5/VT143
Spherical roller bearing with integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
170.0 mm
Bore diameter
D
280.0 mm
Outside diameter
B
88.0 mm
Width
d2
190.0 mm
Shoulder diameter of inner ring
D1
256.0 mm
Shoulder/recess diameter of outer ring
b
13.9 mm
Width of lubrication groove
K
7.5 mm
Diameter of lubrication hole
r1,2
2.1 mm
Chamfer dimension
mass
21.5 kg
Product net weight
