SKF 23152 CACK/W33

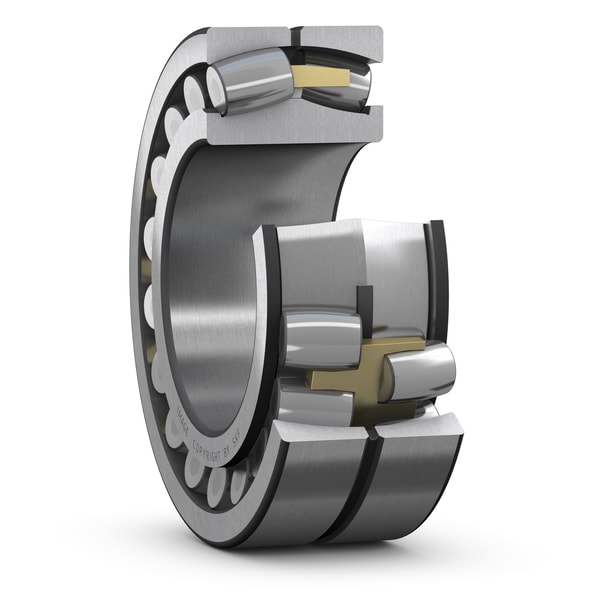

Spherical roller bearing with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
260.0 mm
Bore diameter
D
440.0 mm
Outside diameter
B
144.0 mm
Width
d2
314.0 mm
Shoulder diameter of inner ring
D1
380.0 mm
Shoulder/recess diameter of outer ring
b
16.7 mm
Width of lubrication groove
K
9.0 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
mass
87.7 kg
Product net weight
