SKF 23196 CA/W33

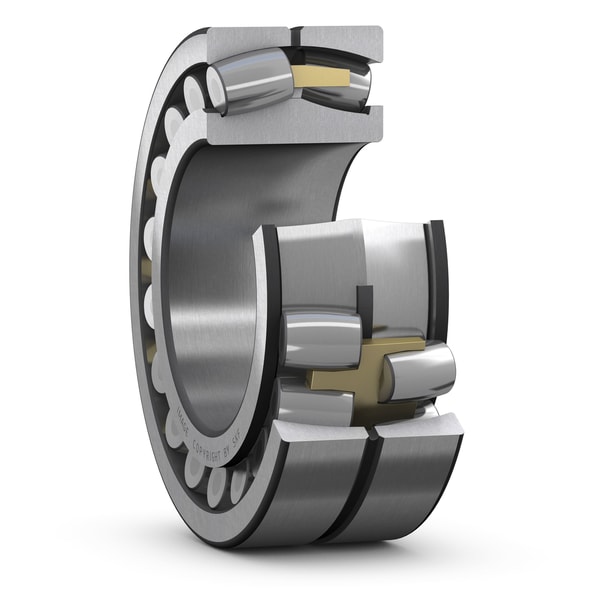

Spherical roller bearing with relubrication features
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
480.0 mm
Bore diameter
D
790.0 mm
Outside diameter
B
248.0 mm
Width
d2
579.0 mm
Shoulder diameter of inner ring
D1
692.0 mm
Shoulder/recess diameter of outer ring
b
22.3 mm
Width of lubrication groove
K
12.0 mm
Diameter of lubrication hole
r1,2
7.5 mm
Chamfer dimension
mass
485.0 kg
Product net weight
