SKF 23218 CC/W33

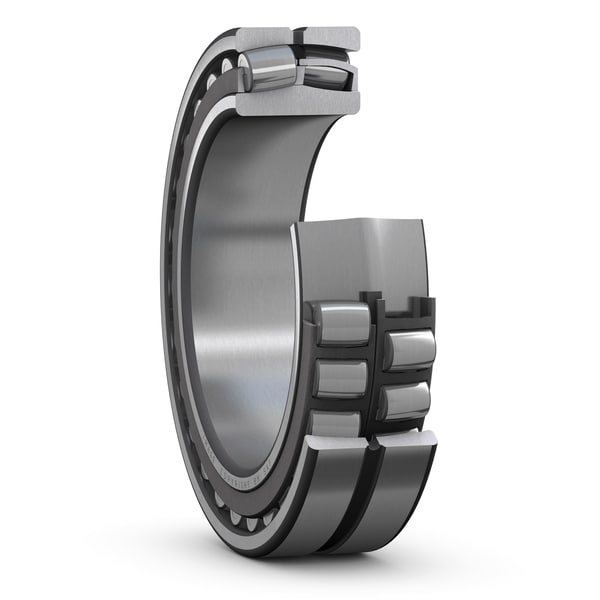

Spherical roller bearing with relubrication features
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
90.0 mm
Bore diameter
D
160.0 mm
Outside diameter
B
52.4 mm
Width
d2
106.0 mm
Shoulder diameter of inner ring
D1
137.0 mm
Shoulder/recess diameter of outer ring
b
6.0 mm
Width of lubrication groove
K
3.0 mm
Diameter of lubrication hole
r1,2
2.0 mm
Chamfer dimension
mass
4.45 kg
Product net weight
