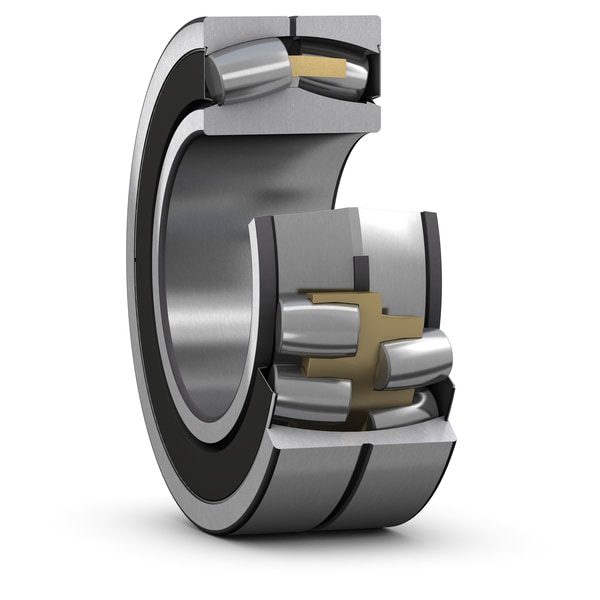

SKF 23272-2CS5K/VT143
Spherical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
360.0 mm
Bore diameter
D
650.0 mm
Outside diameter
B
232.0 mm
Width
d2
429.0 mm
Shoulder diameter of inner ring
D1
581.0 mm
Shoulder/recess diameter of outer ring
b
22.3 mm
Width of lubrication groove
K
12.0 mm
Diameter of lubrication hole
r1,2
6.0 mm
Chamfer dimension
mass
324.0 kg
Product net weight
