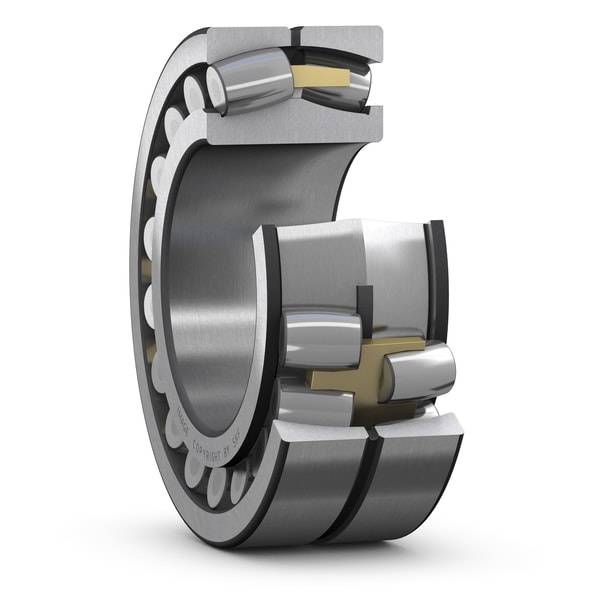

SKF 239/670 CA/W33

Spherical roller bearing with relubrication features
(BRAND):SKF
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

239/670 CA/W33

Dimensions

d 670.0 mm Bore diameter
D 900.0 mm Outside diameter
B 170.0 mm Width
d2 752.0 mm Shoulder diameter of inner ring
D1 835.0 mm Shoulder/recess diameter of outer ring
b 22.3 mm Width of lubrication groove
K 12.0 mm Diameter of lubrication hole
r1,2 6.0 mm Chamfer dimension
mass 315.0 kg Product net weight
