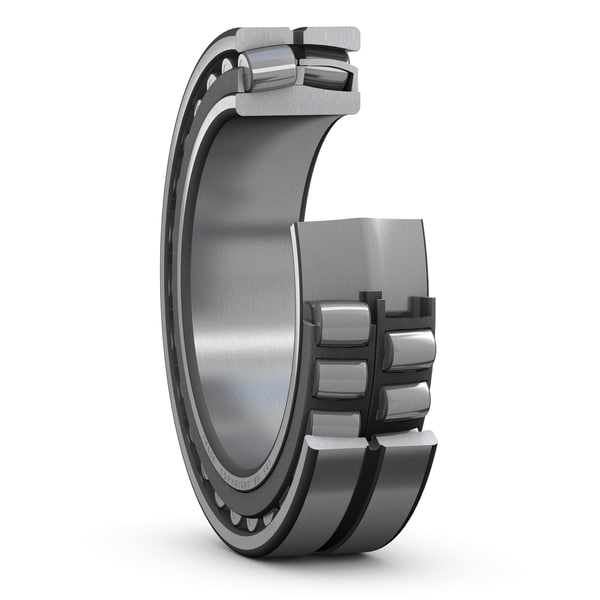

SKF 23972 CCK/W33
Spherical roller bearing with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
360.0 mm
Bore diameter
D
480.0 mm
Outside diameter
B
90.0 mm
Width
d2
394.0 mm
Shoulder diameter of inner ring
D1
447.0 mm
Shoulder/recess diameter of outer ring
b
11.1 mm
Width of lubrication groove
K
6.0 mm
Diameter of lubrication hole
r1,2
3.0 mm
Chamfer dimension
mass
43.3 kg
Product net weight
