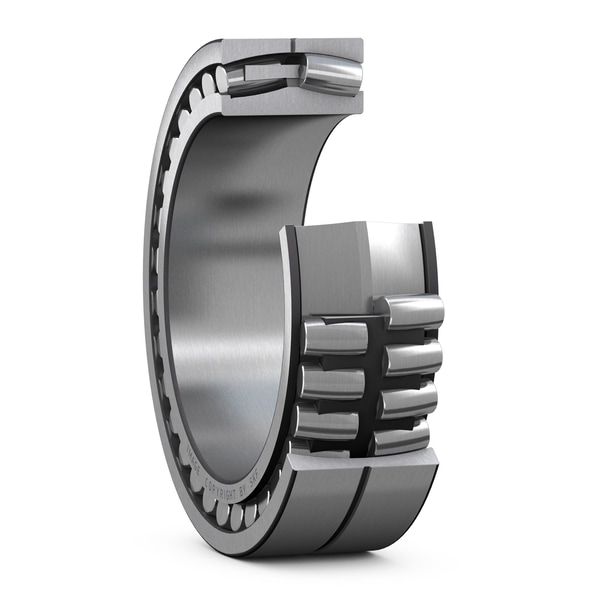

SKF 240/1120 CAF/W33
Spherical roller bearing with relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
1120.0 mm
Bore diameter
D
1580.0 mm
Outside diameter
B
462.0 mm
Width
d2
1268.0 mm
Shoulder diameter of inner ring
D1
1423.0 mm
Shoulder/recess diameter of outer ring
b
22.3 mm
Width of lubrication groove
K
12.0 mm
Diameter of lubrication hole
r1,2
9.5 mm
Chamfer dimension
mass
2925.0 kg
Product net weight
