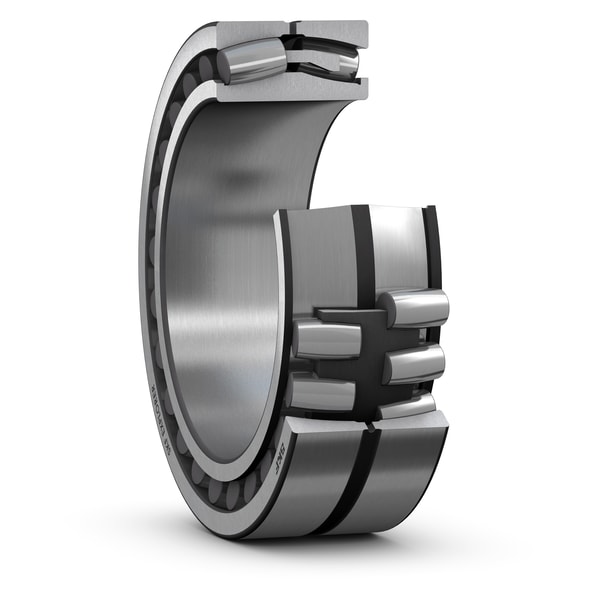

SKF 240/750 BC
Spherical roller bearing for wind turbine main shafts
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
750.0 mm
Bore diameter
D
1090.0 mm
Outside diameter
B
335.0 mm
Width
d2
856.0 mm
Shoulder diameter of inner ring
D1
984.0 mm
Shoulder/recess diameter of outer ring
b
72.8 mm
Width of lubrication groove
K
15.0 mm
Diameter of lubrication hole
r1,2
7.5 mm
Chamfer dimension
mass
1065.0 kg
Product net weight
