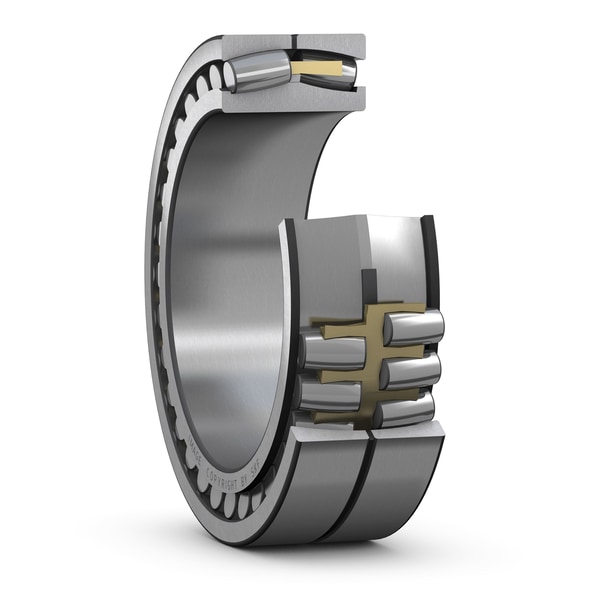

SKF 240/750 ECAK30/W33
Spherical roller bearing with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
750.0 mm
Bore diameter
D
1090.0 mm
Outside diameter
B
335.0 mm
Width
d2
855.0 mm
Shoulder diameter of inner ring
D1
970.0 mm
Shoulder/recess diameter of outer ring
b
22.3 mm
Width of lubrication groove
K
12.0 mm
Diameter of lubrication hole
r1,2
7.5 mm
Chamfer dimension
mass
1025.0 kg
Product net weight
