SKF 24013 CC/W33/255927

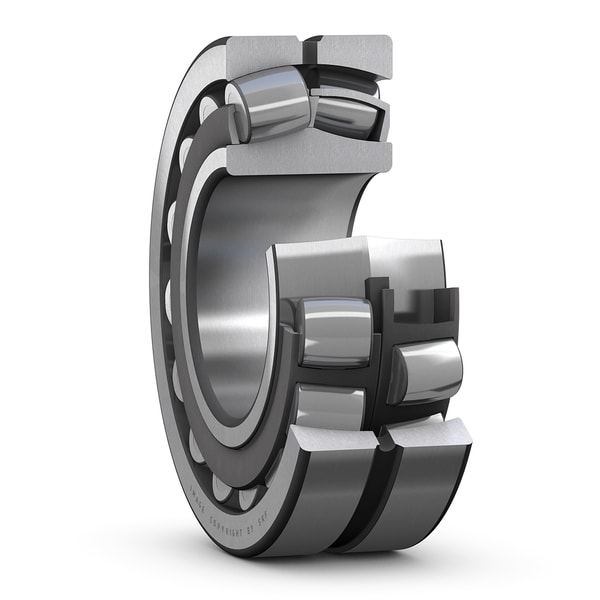

Spherical roller bearing with relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
65.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
35.0 mm
Width
d2
73.9 mm
Shoulder diameter of inner ring
D1
87.3 mm
Shoulder/recess diameter of outer ring
b
3.7 mm
Width of lubrication groove
K
2.0 mm
Diameter of lubrication hole
r1,2
1.1 mm
Chamfer dimension
mass
0.903 kg
Product net weight
