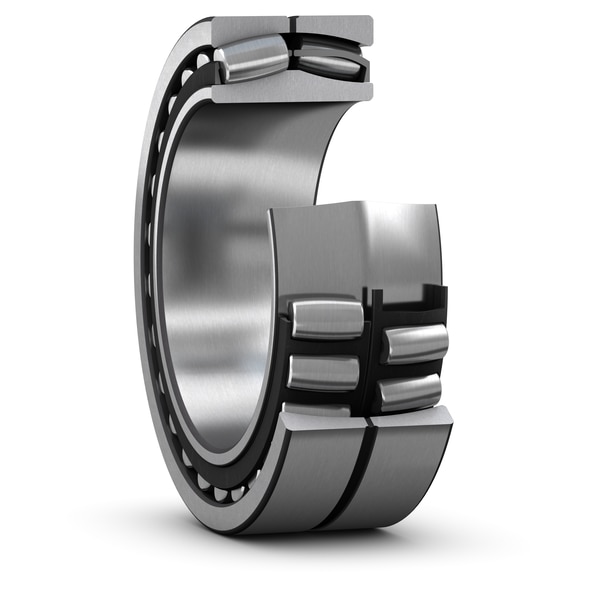

SKF 24028/C3W33VA9B1
Spherical roller bearing for continuous casters, with relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
140.0 mm
Bore diameter
D
210.0 mm
Outside diameter
B
69.0 mm
Width
d2
155.0 mm
Shoulder diameter of inner ring
D1
185.0 mm
Shoulder/recess diameter of outer ring
b
6.0 mm
Width of lubrication groove
K
3.0 mm
Diameter of lubrication hole
r1,2
2.0 mm
Chamfer dimension
mass
8.55 kg
Product net weight
