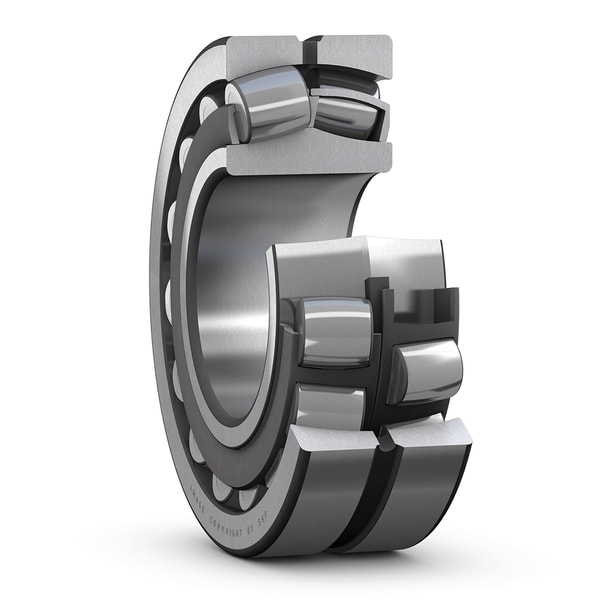

SKF 24052 CC/C4W33VA991
Spherical roller bearing with relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
260.0 mm
Bore diameter
D
400.0 mm
Outside diameter
B
140.0 mm
Width
d2
289.0 mm
Shoulder diameter of inner ring
D1
347.0 mm
Shoulder/recess diameter of outer ring
b
13.9 mm
Width of lubrication groove
K
7.5 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
mass
63.5 kg
Product net weight
