SKF 241/1120 ECAK30/C3HW33

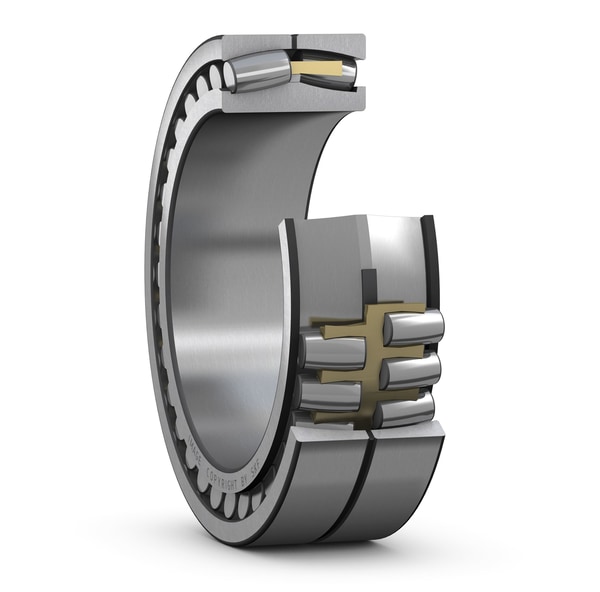

Spherical roller bearing with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
1120.0 mm
Bore diameter
D
1750.0 mm
Outside diameter
B
630.0 mm
Width
d2
1238.0 mm
Shoulder diameter of inner ring
D1
1615.0 mm
Shoulder/recess diameter of outer ring
b
22.3 mm
Width of lubrication groove
K
12.0 mm
Diameter of lubrication hole
r1,2
15.0 mm
Chamfer dimension
mass
5410.0 kg
Product net weight
