SKF 241/530 ECAK30/W33

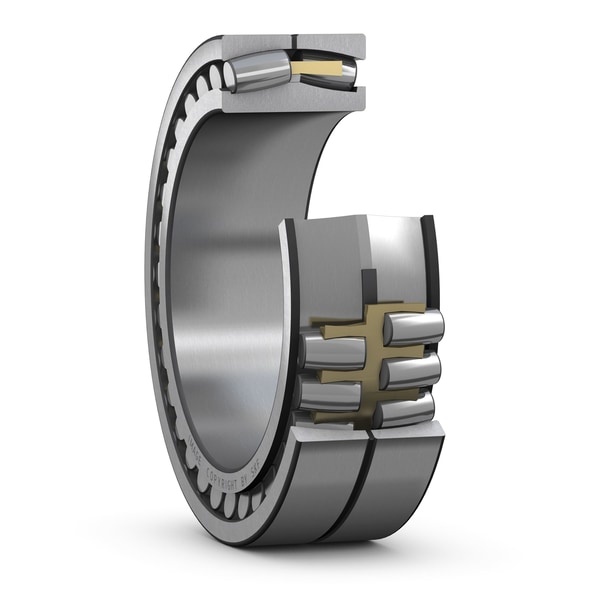

Spherical roller bearing with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
530.0 mm
Bore diameter
D
870.0 mm
Outside diameter
B
335.0 mm
Width
d2
623.0 mm
Shoulder diameter of inner ring
D1
748.0 mm
Shoulder/recess diameter of outer ring
b
22.3 mm
Width of lubrication groove
K
12.0 mm
Diameter of lubrication hole
r1,2
7.5 mm
Chamfer dimension
mass
770.0 kg
Product net weight
