SKF 241/670-2CS5K30/C3HGEA8

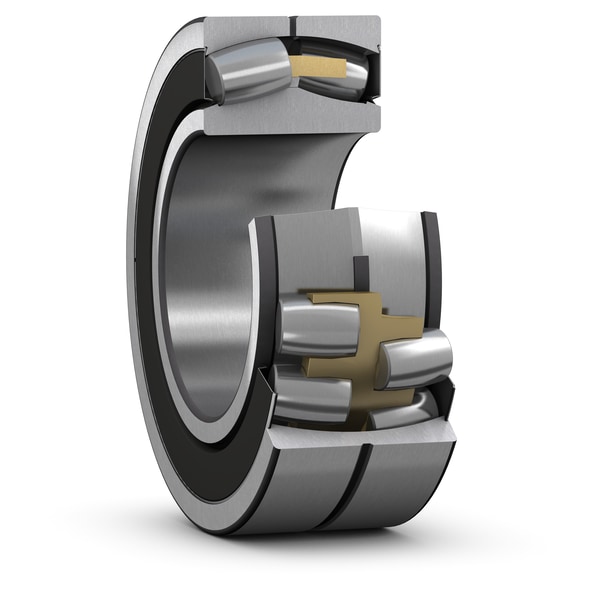

Spherical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
670.0 mm
Bore diameter
D
1090.0 mm
Outside diameter
B
412.0 mm
Width
d2
753.0 mm
Shoulder diameter of inner ring
D1
974.0 mm
Shoulder/recess diameter of outer ring
b
22.3 mm
Width of lubrication groove
K
12.0 mm
Diameter of lubrication hole
r1,2
7.5 mm
Chamfer dimension
mass
1482.0 kg
Product net weight
