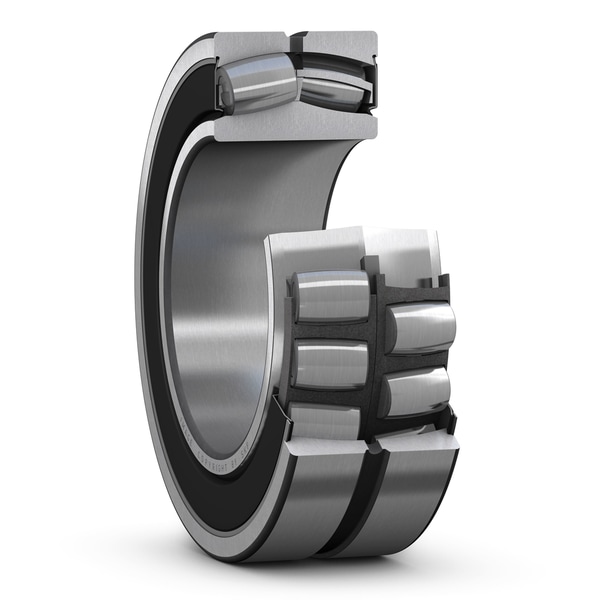

SKF 24124-2CS5/VT143
Spherical roller bearing with integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
120.0 mm
Bore diameter
D
200.0 mm
Outside diameter
B
80.0 mm
Width
d2
132.0 mm
Shoulder diameter of inner ring
D1
179.0 mm
Shoulder/recess diameter of outer ring
b
6.0 mm
Width of lubrication groove
K
3.0 mm
Diameter of lubrication hole
r1,2
2.0 mm
Chamfer dimension
mass
9.96 kg
Product net weight
