SKF 24128/C4W33VA9B1

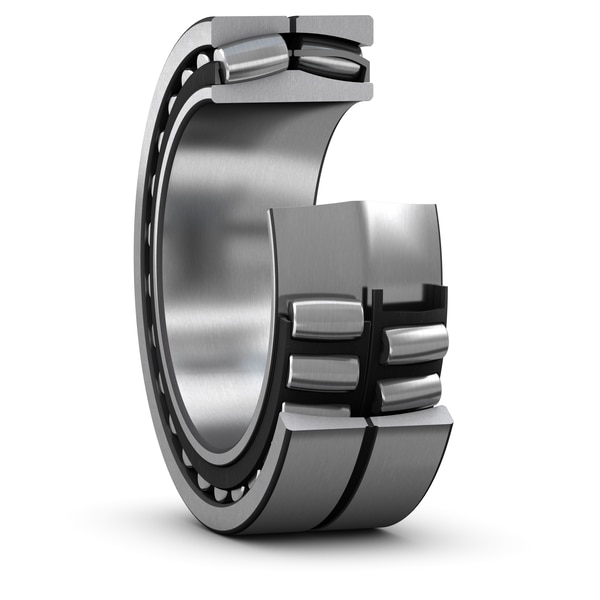

Spherical roller bearing for continuous casters, with relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
140.0 mm
Bore diameter
D
225.0 mm
Outside diameter
B
85.0 mm
Width
d2
156.0 mm
Shoulder diameter of inner ring
D1
193.0 mm
Shoulder/recess diameter of outer ring
b
8.3 mm
Width of lubrication groove
K
4.5 mm
Diameter of lubrication hole
r1,2
2.1 mm
Chamfer dimension
mass
12.6 kg
Product net weight
