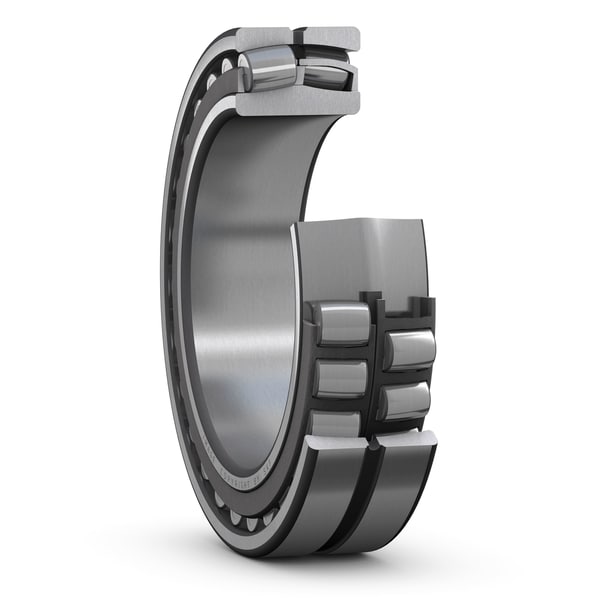

SKF 24128 CC/W33
Spherical roller bearing with relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
140.0 mm
Bore diameter
D
225.0 mm
Outside diameter
B
85.0 mm
Width
d2
156.0 mm
Shoulder diameter of inner ring
D1
193.0 mm
Shoulder/recess diameter of outer ring
b
8.3 mm
Width of lubrication groove
K
4.5 mm
Diameter of lubrication hole
r1,2
2.1 mm
Chamfer dimension
mass
12.7 kg
Product net weight
