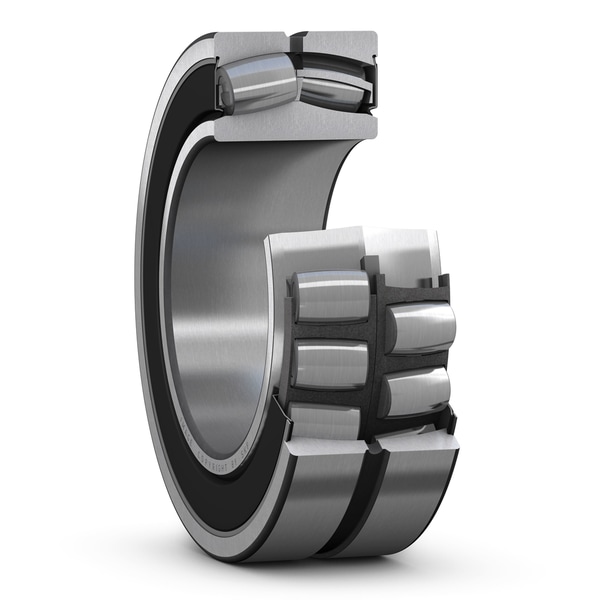

SKF 24132-2CS5/VT143
Spherical roller bearing with integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
160.0 mm
Bore diameter
D
270.0 mm
Outside diameter
B
109.0 mm
Width
d2
176.0 mm
Shoulder diameter of inner ring
D1
239.0 mm
Shoulder/recess diameter of outer ring
b
8.3 mm
Width of lubrication groove
K
4.5 mm
Diameter of lubrication hole
r1,2
2.1 mm
Chamfer dimension
mass
24.8 kg
Product net weight
