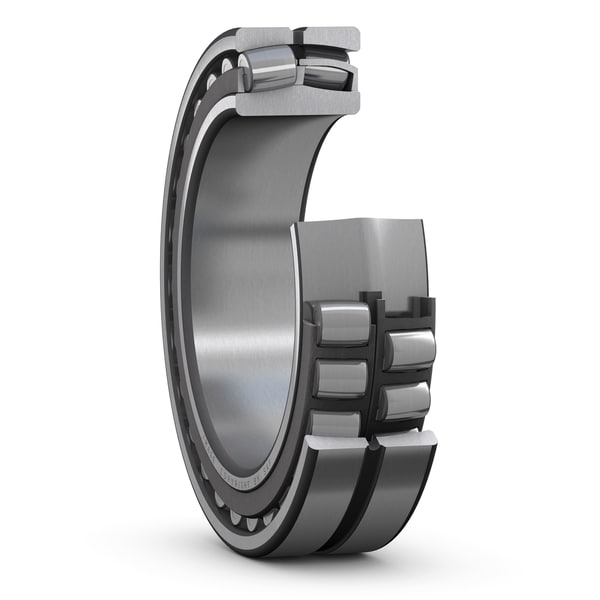

SKF 24168 ECCJ/W33
Spherical roller bearing with relubrication features
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
340.0 mm
Bore diameter
D
580.0 mm
Outside diameter
B
243.0 mm
Width
d2
383.0 mm
Shoulder diameter of inner ring
D1
491.0 mm
Shoulder/recess diameter of outer ring
b
16.7 mm
Width of lubrication groove
K
9.0 mm
Diameter of lubrication hole
r1,2
5.0 mm
Chamfer dimension
mass
258.0 kg
Product net weight
