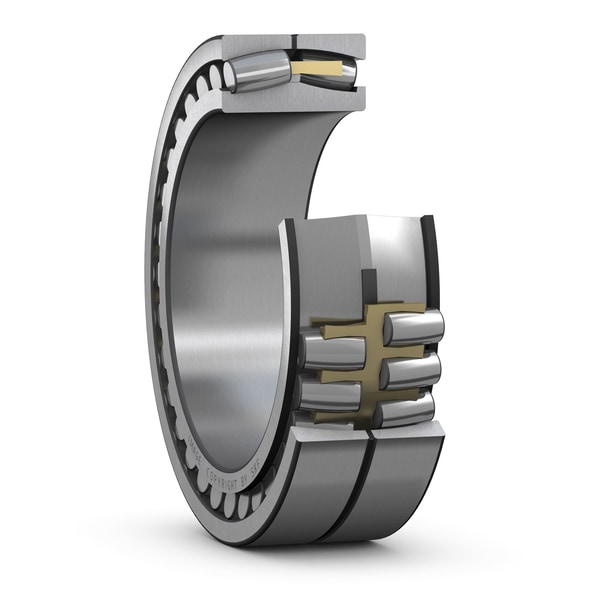

SKF 24176 ECAK30/W33
Spherical roller bearing with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
380.0 mm
Bore diameter
D
620.0 mm
Outside diameter
B
243.0 mm
Width
d2
444.0 mm
Shoulder diameter of inner ring
D1
532.0 mm
Shoulder/recess diameter of outer ring
b
16.7 mm
Width of lubrication groove
K
9.0 mm
Diameter of lubrication hole
r1,2
5.0 mm
Chamfer dimension
mass
282.0 kg
Product net weight
