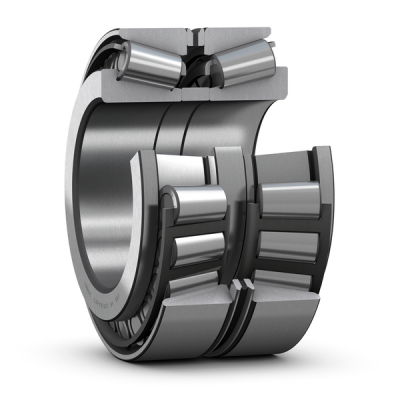

SKF 30215T70/DBC270
Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
75.0 mm
Bore diameter
D
130.0 mm
Outside diameter
T
70.0 mm
Total width
d1
99.83 mm
Shoulder diameter of inner ring
C
59.5 mm
Width of outer rings
l
15.5 mm
Width of spacer ring
b
8.6 mm
Width of lubrication groove
K
5.0 mm
Diameter of lubrication hole
r1,2
2.0 mm
Chamfer dimension
r5
0.6 mm
Chamfer dimension
a
68.939 mm
Distance between pressure points
mass
3.21 kg
Product net weight
