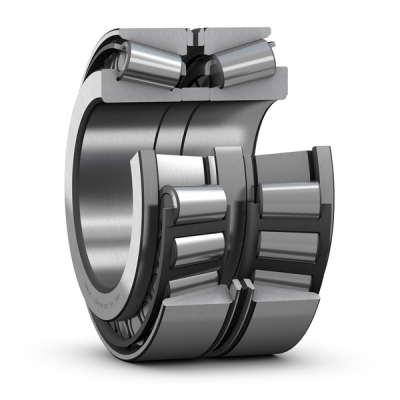

SKF 32052T194 X/DB
Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
260.0 mm
Bore diameter
D
400.0 mm
Outside diameter
T
194.0 mm
Total width
d1
328.95 mm
Shoulder diameter of inner ring
C
150.0 mm
Width of outer rings
l
20.0 mm
Width of spacer ring
b
11.0 mm
Width of lubrication groove
K
8.0 mm
Diameter of lubrication hole
r1,2
5.0 mm
Chamfer dimension
r5
1.5 mm
Chamfer dimension
a
188.238 mm
Distance between pressure points
mass
80.6 kg
Product net weight
