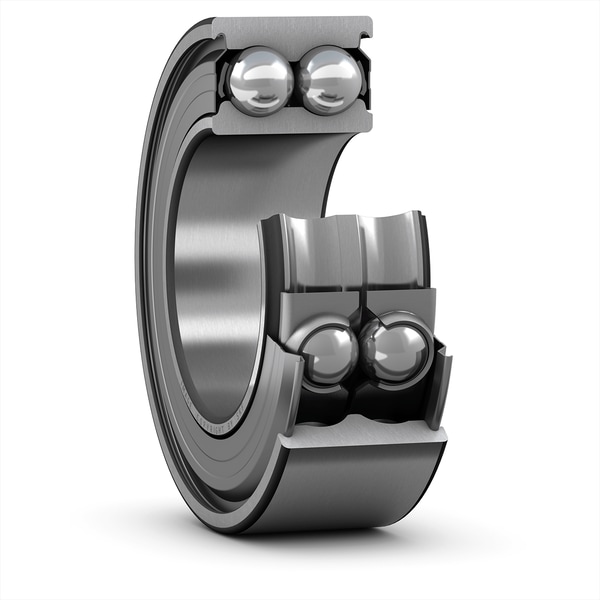

SKF 3304 A-2Z
Double row angular contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
20.0 mm
Bore diameter
D
52.0 mm
Outside diameter
B
22.2 mm
Width
d2
29.9 mm
Recess diameter inner ring shoulder
D2
43.95 mm
Recess diameter outer ring shoulder
r1,2
1.1 mm
Chamfer dimension inner ring
a
30.0 mm
Distance pressure point(s)
mass
0.226 kg
Product net weight
