SKF 3306 ATN9

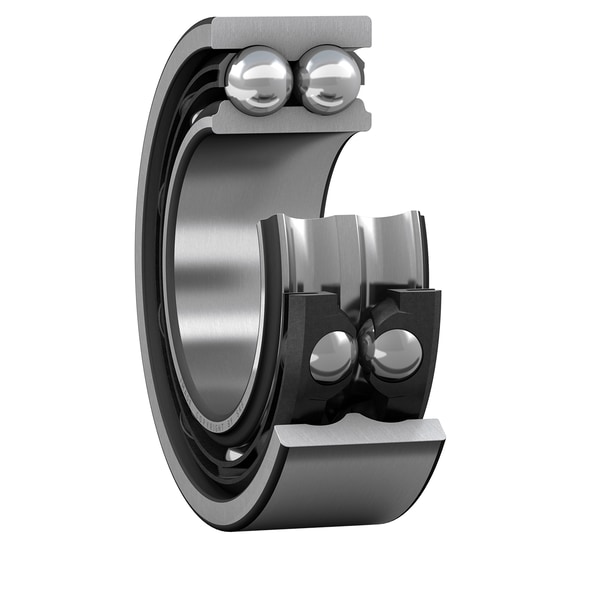

Double row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Bore diameter
D
72.0 mm
Outside diameter
B
30.2 mm
Width
d2
39.8 mm
Recess diameter inner ring shoulder
D2
64.1 mm
Recess diameter outer ring shoulder
r1,2
1.1 mm
Chamfer dimension inner ring
a
42.0 mm
Distance pressure point(s)
mass
0.52 kg
Product net weight
