SKF 3308 DNRCBM

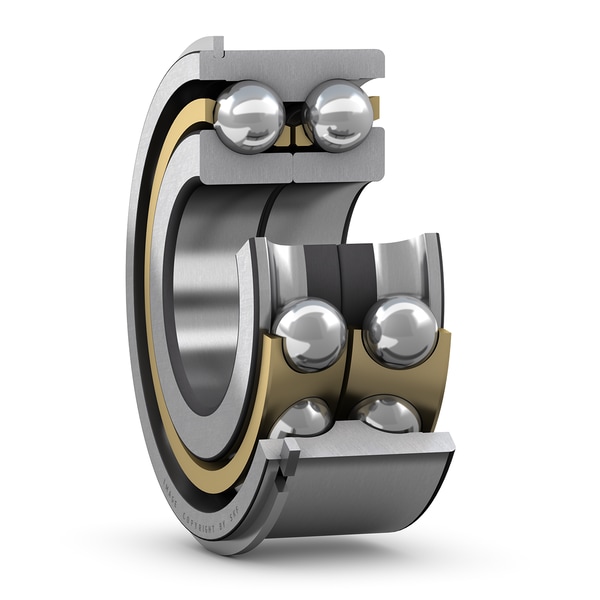

Double row angular contact ball bearing with snap ring and split inner ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
40.0 mm
Bore diameter
D
90.0 mm
Outside diameter
B
36.5 mm
Width
d1
61.15 mm
Shoulder diameter inner ring for two-piece inner ring
D1
77.47 mm
Shoulder diameter outer ring
D3
86.8 mm
Snap ring groove diameter at outer ring
D4
96.5 mm
Outside diameter snap ring
C
3.28 mm
Distance outer ring side face - snap ring groove
b
2.7 mm
Width snap ring groove outer ring
f
2.46 mm
Width snap ring
r0
0.6 mm
Snap ring groove bottom radius
r1,2
1.5 mm
Chamfer dimension inner ring for two-piece inner ring
a
71.0 mm
Distance pressure point(s)
mass
1.13 kg
Product net weight
