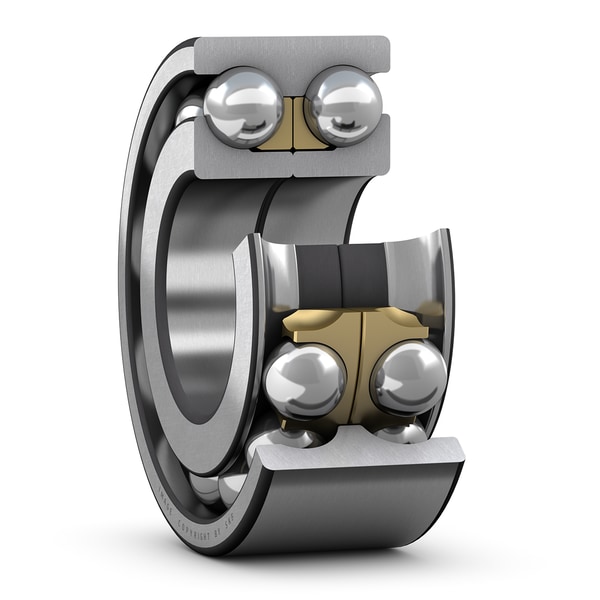

SKF 3308 DTN9
Double row angular contact ball bearing with two-piece inner ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
40.0 mm
Bore diameter
D
90.0 mm
Outside diameter
B
36.5 mm
Width
d1
59.4 mm
Shoulder diameter inner ring for two-piece inner ring
D1
77.8 mm
Shoulder diameter outer ring
r1,2
1.5 mm
Chamfer dimension inner ring for two-piece inner ring
a
84.0 mm
Distance pressure point(s)
mass
1.04 kg
Product net weight
