SKF 3309 DMA

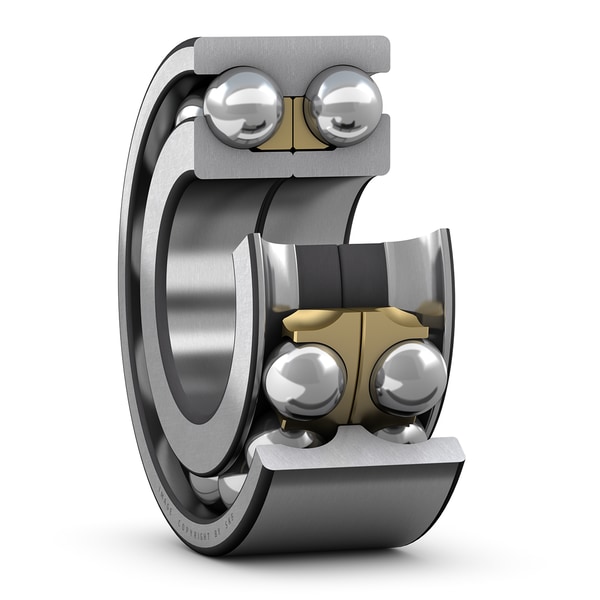

Double row angular contact ball bearing with two-piece inner ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
45.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
39.7 mm
Width
d1
70.0 mm
Shoulder diameter inner ring for two-piece inner ring
D1
86.35 mm
Shoulder diameter outer ring
r1,2
1.5 mm
Chamfer dimension inner ring for two-piece inner ring
a
93.0 mm
Distance pressure point(s)
mass
1.61 kg
Product net weight
