SKF 331656

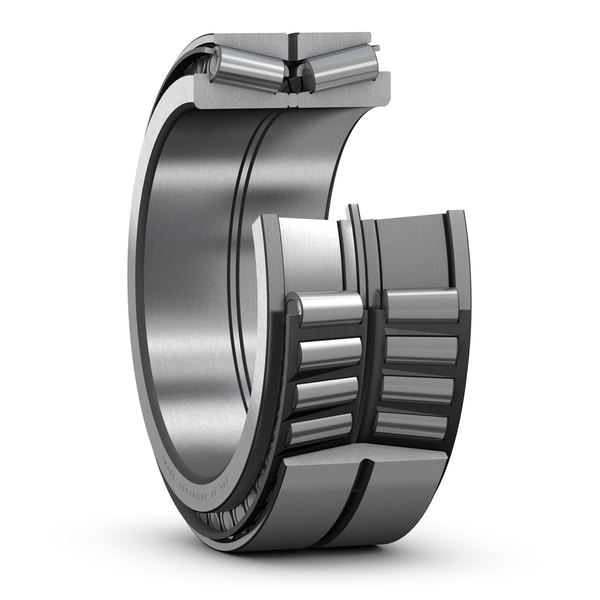

Double row tapered roller bearing, TDO design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
415.925 mm
Bore diameter
D
590.55 mm
Outside diameter
T
244.475 mm
Total width
C
193.675 mm
Width of outer ring
d1
497.5 mm
Shoulder diameter of inner ring (large side face)
D1
562.07 mm
Raceway diameter of outer ring (large side face)
r1,2
6.4 mm
Chamfer dimension of inner ring
r3,4
1.5 mm
Chamfer dimension of outer ring
a
225.0 mm
Distance between pressure points
mass
207.0 kg
Product net weight
