SKF 359 S/354 X

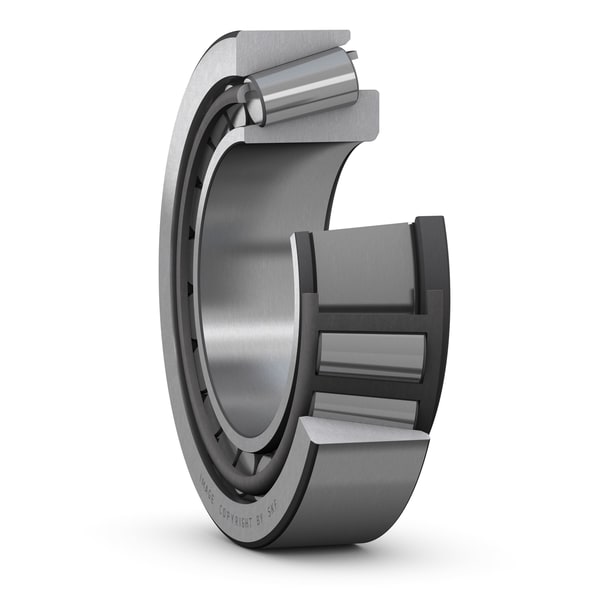

Single row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
46.038 mm
Bore diameter
D
85.0 mm
Outside diameter
T
20.638 mm
Total width
d1
62.4 mm
Shoulder diameter of inner ring
B
21.692 mm
Width of inner ring
C
17.462 mm
Width of outer ring
r1,2
2.3 mm
Chamfer dimension of inner ring
r3,4
1.5 mm
Chamfer dimension of outer ring
a
15.942 mm
Distance side face to pressure point
mass
0.492 kg
Product net weight
