SKF 53215

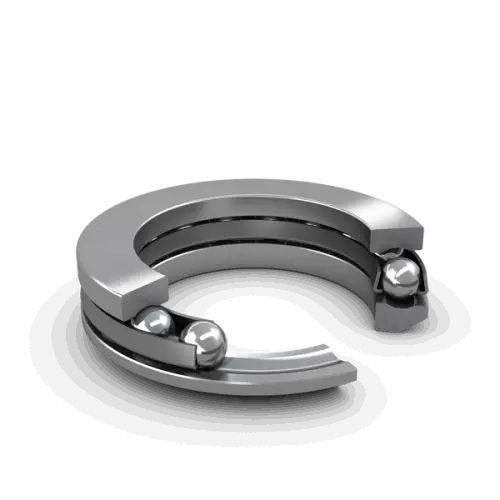

Single direction thrust ball bearing with sphered housing washer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
75.0 mm
Bore diameter
D
110.0 mm
Outside diameter
H
28.3 mm
Height
H1
32.0 mm
Height bearing including seat washer
d1
110.0 mm
Outside diameter shaft washer
D1
77.0 mm
Inner diameter housing washer
D2
92.0 mm
Inner diameter seat washer
D3
115.0 mm
Outside diameter seat washer
C
9.5 mm
Height seat washer
R
90.0 mm
Radius sphered housing washer
s
49.0 mm
Centre height housing washer sphere
r1,2
1.0 mm
Chamfer dimension washer
mass
0.778 kg
Product net weight
