SKF 7204 ACCBM

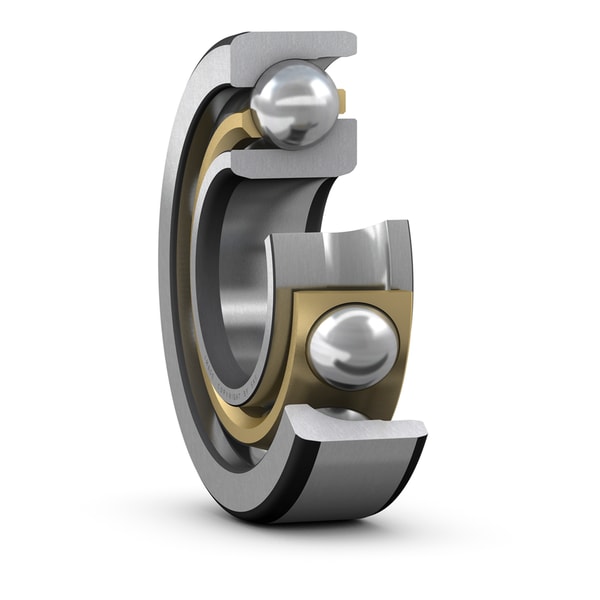

Single row angular contact ball bearing with 25° contact angle
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
20.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
14.0 mm
Width
d1
30.85 mm
Shoulder diameter of inner ring (large side face)
d2
25.87 mm
Shoulder diameter of inner ring (small side face)
D1
36.66 mm
Shoulder diameter of outer ring (large side face)
a
14.0 mm
Distance side face to pressure point
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
0.111 kg
Product net weight
