SKF 811/1060 M

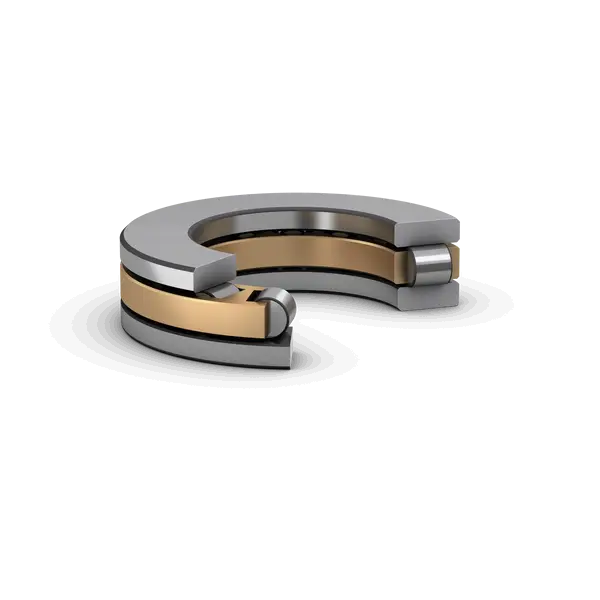

Single row cylindrical roller thrust bearing, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
1060.0 mm
Bore diameter
D
1250.0 mm
Outside diameter
H
150.0 mm
Height
d1
1244.0 mm
Outside diameter shaft washer
D1
1066.0 mm
Bore diameter housing washer
B
45.0 mm
Height shaft washer
r1,2
5.0 mm
Chamfer dimension housing washer
