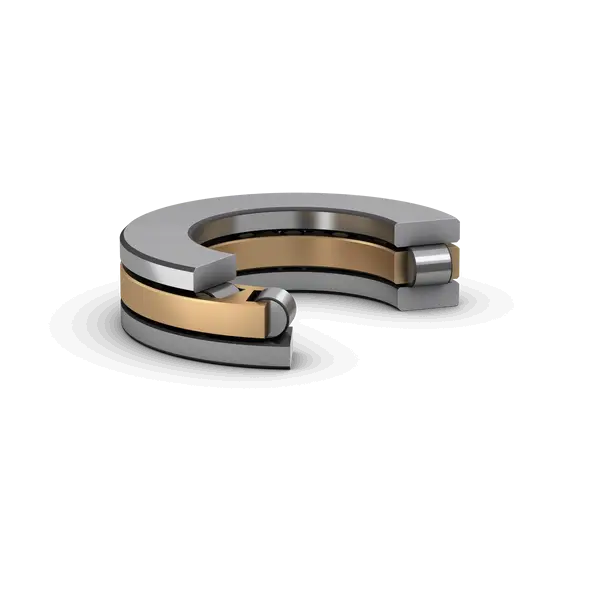

SKF 811/630 M
Single row cylindrical roller thrust bearing, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
630.0 mm
Bore diameter
D
750.0 mm
Outside diameter
H
95.0 mm
Height
d1
746.0 mm
Outside diameter shaft washer
D1
634.0 mm
Bore diameter housing washer
B
28.5 mm
Height shaft washer
r1,2
3.0 mm
Chamfer dimension housing washer
mass
82.1 kg
Product net weight
