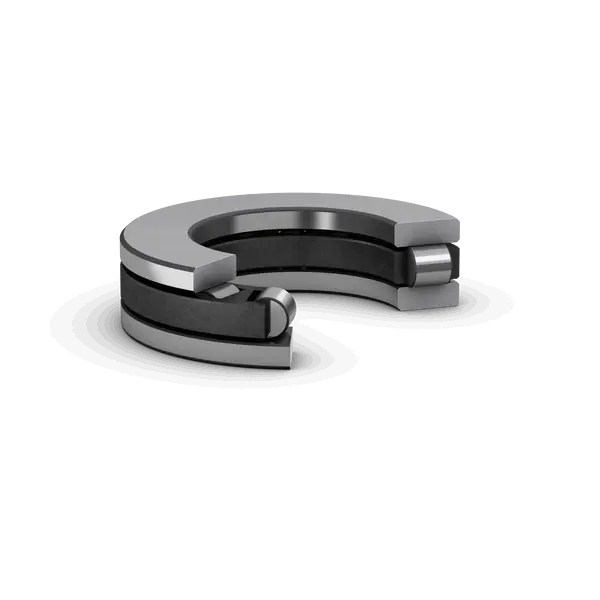

SKF 81115 TN
Single row cylindrical roller thrust bearing, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
75.0 mm
Bore diameter
D
100.0 mm
Outside diameter
H
19.0 mm
Height
d1
100.0 mm
Outside diameter shaft washer
D1
77.0 mm
Bore diameter housing washer
B
5.75 mm
Height shaft washer
r1,2
1.0 mm
Chamfer dimension housing washer
mass
0.391 kg
Product net weight
